ART ON DEMAND

Chapter 4 will show that Colonization's whole simulated world — every unit, colony, tribe and tile — is about 24 KB. The memory problem was never the simulation. It was the presentation: 320×200 screens at 64,000 bytes a frame, sprite sets for eight native nations, an 891-frame opening cutscene, four colonial powers' regalia. Laid out flat, the art is 4.34 MB against a 640 KB arena that also has to hold DOS, the program, and its buffers. So the art pipeline is built on one rule, applied without sentiment: a decompressed asset is a transient, not a possession.

MADSPACK 2.0, anatomised

Of the 287 files in our Colonization install tree (three are later corpus additions), 246 open with the same 13 bytes: the ASCII string MADSPACK 2.0 followed by a DOS end-of-file mark, 0x1A. That is the container format of MicroProse's in-house MADS engine — 206 .ss sprite sets, 35 .pik full-and-part-screen pictures, and 5 .ff fonts. The layout is fixed and frugal:

0x00  "MADSPACK 2.0" 1A 00            14-byte signature
0x0E  u16   section count              1–4 observed
0x10  16 × 10-byte slots:              { u16 flags, u32 decompressed, u32 compressed }
      flags, low byte:  0 = stored · 1 = FAB-compressed
      flags, high byte: uninitialised packer memory (see below)
0xB0  section payloads, back to back,  each `compressed` bytes long

We verified the flag semantics across every one of the 933 sections in the install: all 793 sections flagged 1 begin with the three-byte magic FAB; all 140 flagged 0 have compressed size equal to decompressed size and no magic. The totals are exact: 4,344,422 bytes decompressed from 2,307,349 bytes of payload — a 1.88× ratio — carried in 2,350,804 bytes on disk once you add the 246 fixed 176-byte headers and 159 bytes of trailing rubbish.

FAB, bit by bit

FAB is MicroProse's own LZ77 variant, and we know its exact semantics from an unusually good source: ScummVM's MADS engine contains a C port of MicroProse's actual assembly — pFABcomp.asm by David McKibbin, dated 5 September 1992, from the "MPS Labs Graphic Library", together with its three decompressor siblings pFABexp0/1/2.asm. Those same module names appear in the CodeView debug block that Colonization's opening.exe ships (Chapter 1) — the library on disc and the library in the binary are one and the same. The stream grammar:

'F' 'A' 'B'  DICT                      4-byte magic; DICT = log2 window (12 → 4,096 B)
16-bit control words, bits consumed LSB-first; each bit governs one item:
  1                → literal: copy one byte from the data stream
  0 0  + 2 bits    → short match: length 2–5, one offset byte, distance 1–255
  0 1              → long match: two bytes = 12-bit offset into the 4,096-byte
                     window + 4-bit length field (1–15 → length 3–17);
                     field 0 → an escape byte follows:
                       0 = EXIT (end of stream) · 1 = NORMALIZE · N≥2 → length N+1 (≤253)

Matches are copied byte-by-byte, so a match may overlap the bytes it is writing — distance −1 with length 5 turns one literal into six identical bytes, which is run-length encoding for free. There is no length header anywhere: decompression ends only when the in-stream EXIT marker arrives.

We have also watched the shipped decompressor run. Disassembled live under mddosem, viceroy.exe's FAB routine sits at offset 0466 of the root code segment: a far function taking three far pointers and returning with RETF 12, no size argument anywhere. Its bit reservoir is kept in BP and refilled with a carry-flag bridge (SHR BP,1 / LODSW / RCL / RCR) — the exact 17-bit trick ScummVM reproduces in C — and its window shift and masks are self-modifying code, written at run time into CS:045E–0464, bytes that are zero in the file on disk. The same routine serves double duty: Chapter 1's overlay manager compresses evicted code pages with FAB into an in-memory cache and re-inflates them on return.

A screen in 29,746 bytes

Here is what the container and the codec buy, on one concrete file. The closing-scene backdrop clos-bkg.pik is 29,746 bytes on disk and parses to the byte: a 176-byte MADSPACK header, then three FAB sections — 17 bytes that inflate to 8 bytes of metadata, 28,800 bytes that inflate to the 64,000-byte Mode 13h frame (2.22×), and a 753-byte section for the 768-byte VGA palette, which barely compresses because a palette is already near-random. Thirty-three of the 35 .piks carry a 64,000-byte section and decompress to exactly 64,776 bytes — frame plus palette plus metadata. The near-empty Atlantic chart europe.pik ships the same screen in 7,011 bytes; colony.pik gets 23,048 bytes of colony backdrop from 2,857 (8.1×).

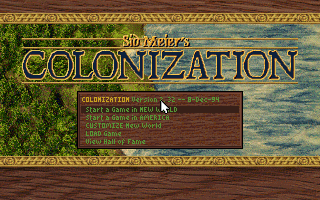

Now the part that makes it work in 640 KB: the decompressor itself needs almost no room. Of the three shipped variants, pFABexp1 (file-to-memory) runs in a work buffer of about 2 KB — it streams the compressed bytes through a 2,048-byte read buffer and writes finished pixels straight to their destination, so a 45 KB compressed screen can inflate through a two-kilobyte keyhole. The path we actually watched run is the memory-to-memory variant: when Colonization draws its title, it reads openmenu.pik's 45,855-byte frame section into one game-managed buffer and FAB-inflates it into a second just 18,752 bytes away — so close that the output overruns the source while it is still being read, the overlap Chapter 2 dissects — then blits the finished 64,000-byte frame to the screen. Neither buffer is DOS-allocated: both live at raw addresses in the freed arena, under the game's own bookkeeping.

Civilization's codec, cracked

Three years earlier, Civilization solved the same problem with a different in-house codec — and this one we re-implemented from scratch. Every Civ image is a .PIC: a sequence of tagged blocks, each a two-character ASCII tag plus a 16-bit length. Walking all 106 .PIC and 38 .PAL files in the install, every single file parses to exactly its end-of-file with one of four tag patterns:

The image payload is double-compressed: LZW, then run-length. The LZW codes are packed LSB-first, starting at 9 bits and growing to a declared maximum — always 11 bits here, a 2,048-entry dictionary (perhaps 6 KB of table RAM at three bytes an entry; the shipped table layout is not recovered). Code 256 is reserved and never used; the first dictionary code is 257. There is no clear code: when the dictionary fills, the decoder silently resets it and drops back to 9-bit codes — and, a detail we pinned by experiment, the reserved code persists after every reset. Decode with base 257 after reset and all 116 compressed files in the install emerge at exactly the right byte count; decode with base 256, as one community write-up suggests, and they fail. After LZW comes an RLE pass keyed on escape byte 0x90: VV 90 CC expands to CC copies of VV, and 90 00 is a literal 0x90.

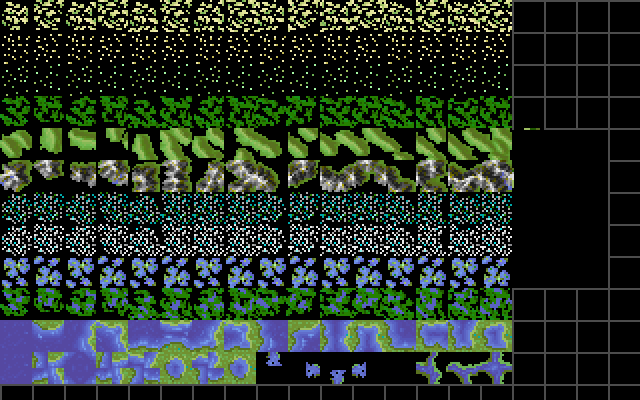

Proof by construction: our decoder, written from these rules alone, decodes 106 of 106 .PIC files and 10 of 10 save-game .MAP files with zero errors. The title screen below is 6,047 bytes on disk for a 64,000-byte frame — 10.6:1, against FAB's 2.2:1 on similar art, the reward for spending a dictionary on every image. The .MAP files are the punchline this site keeps returning to: Civ compresses its world map with the picture codec (Chapter 4).

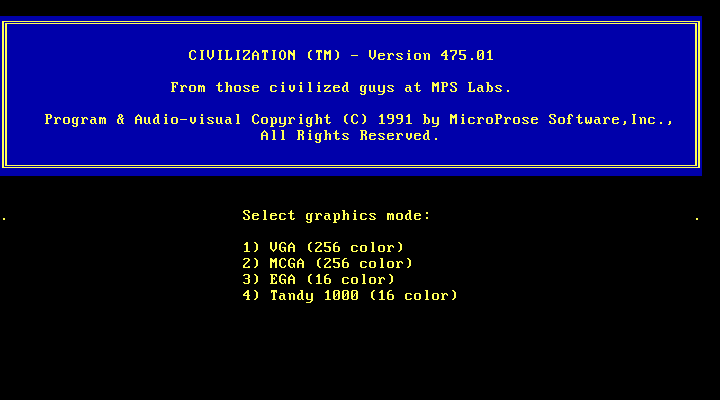

The oddest block is the cleverest. Civilization's setup menu offers VGA, MCGA, EGA and Tandy — no CGA (and, matching that, not one CGA C0 block exists in the install). But EGA has 16 colours and the art is painted in 256. The bridge is the E0 block: 258 bytes, one byte per palette index, each byte a pair of 4-bit EGA colours that the EGA driver renders as an alternating dither. In BIRTH1.PIC the 16 pure entries read 0x00, 0x11, … 0xFF, and entry 0x86 means "a checkerboard of EGA colour 8 and colour 6" — dark grey and brown blending, at 320×200 on a period monitor, into something the eye reads as a ninth-and-a-half colour. Every image carries its own hand-tuned reduction table: 256-colour art, EGA delivery, zero extra assets.

Two footnotes complete the family. All 38 .PAL files are 782 bytes with an identical layout: a full M0 palette block — 256 RGB triplets whose values never exceed 0x3F, because they are 6-bit VGA DAC values — followed by an empty X0 stub declaring a 0×0 image. A palette file is just a picture with no pixels, so one block-walking loader reads both. And the palettes matter more than the pixels: Civ's famous intro animates almost entirely by rewriting the DAC while the framebuffer sits still.

Sound the same way

The streaming philosophy is not only visual. coldig.bin, Colonization's digitised speech and effects, is 993,755 bytes of raw, headerless, unsigned 8-bit PCM — we verified the format statistically: byte mean 127.0, the distribution peaked at 0x7F/0x80 silence, 94% of samples within 0x60–0xA0. That single file is one and a half times the entire conventional-memory arena, so it never loads; it streams. During the opening cutscene the front-end moves it through the EMS page frame in 61 chunks of 16 KB across 207 INT 67h calls, feeding the Sound Blaster DAC from a window of bank-switched memory (the Overview's memory map shows the frame).

The players are swappable too. Colonization ships four sound-driver overlays — asound/gsound/psound/rsound.col, MZ executables of 46,242–48,651 bytes — and loads exactly one, for the configured device, via DOS EXEC subfunction 4B03; we watched the game load ASOUND.COL and then shrink its allocation from 31,866 paragraphs to 3,061 (~498 KB of loader headroom down to ~49 KB resident). Every driver exports its API as a numbered vector table in a shared container format: 16 zero bytes, a 26-byte ID string with an embedded build date, three size words, then a counted vector list. Sound drivers export 11 vectors, Civ's video drivers 52 — and the "no sounds please" driver, NSOUND.CVL, is 720 bytes that fill all 11 slots with two-instruction stubs.

This table is the engine lineage written in bytes. The 1994 drivers use the same container — same 512-byte MZ header shape, same 0000:0010 entry, same ID-string offset, same 11-slot table — as the 1991 ones, while the code inside was fully rebuilt: beyond the format, the old and new AdLib drivers share two bytes of MZ prefix and not one printable string of six characters or more. And MISC.EXE, still on Civ's disk in 1991, identifies itself as MISCOVR.EXE, built February 1989: MPS Labs infrastructure carried forward across at least five years of games. What changed is capability: Colonization's asound.col probes for EMMXXXX0 and names coldig.bin — the 1994 generation grew EMS-streamed digital audio that 1991 Civilization, which ships no digitised-audio file at all, never had. Civ's music appears to live as note tables inside the drivers themselves.

Step back and the two pipelines are one idea at two dates. 1991: a dictionary codec with per-image palettes and dither tables, decompressed picture by picture into a machine with no memory to spare. 1994: a faster LZ with segment arithmetic in its control codes, inflating each frame into transient game-managed buffers, with a megabyte of PCM flowing past a 64 KB EMS window. Neither game ever holds its art. The art happens, frame by frame, and is gone.

Sources for this chapter — byte-level: MADSPACK census of all 287 Colonization files, clos-bkg.pik section walk, and a from-scratch LZW+RLE decoder run over the Civ install's full .PIC/.PAL/.MAP set (106/106, 10/10), fresh 2026-07-18 analysis; runtime: live mddosem disassembly of the in-game FAB decompressor and the EMS audio-streaming traces; community: ScummVM's MADS engine (pfab.cpp, a C port of MicroProse's pFABcomp.asm), with PIC-format leads from canadianavenger.io and darkpanda's CivFanatics work — full credits in How We Know.
